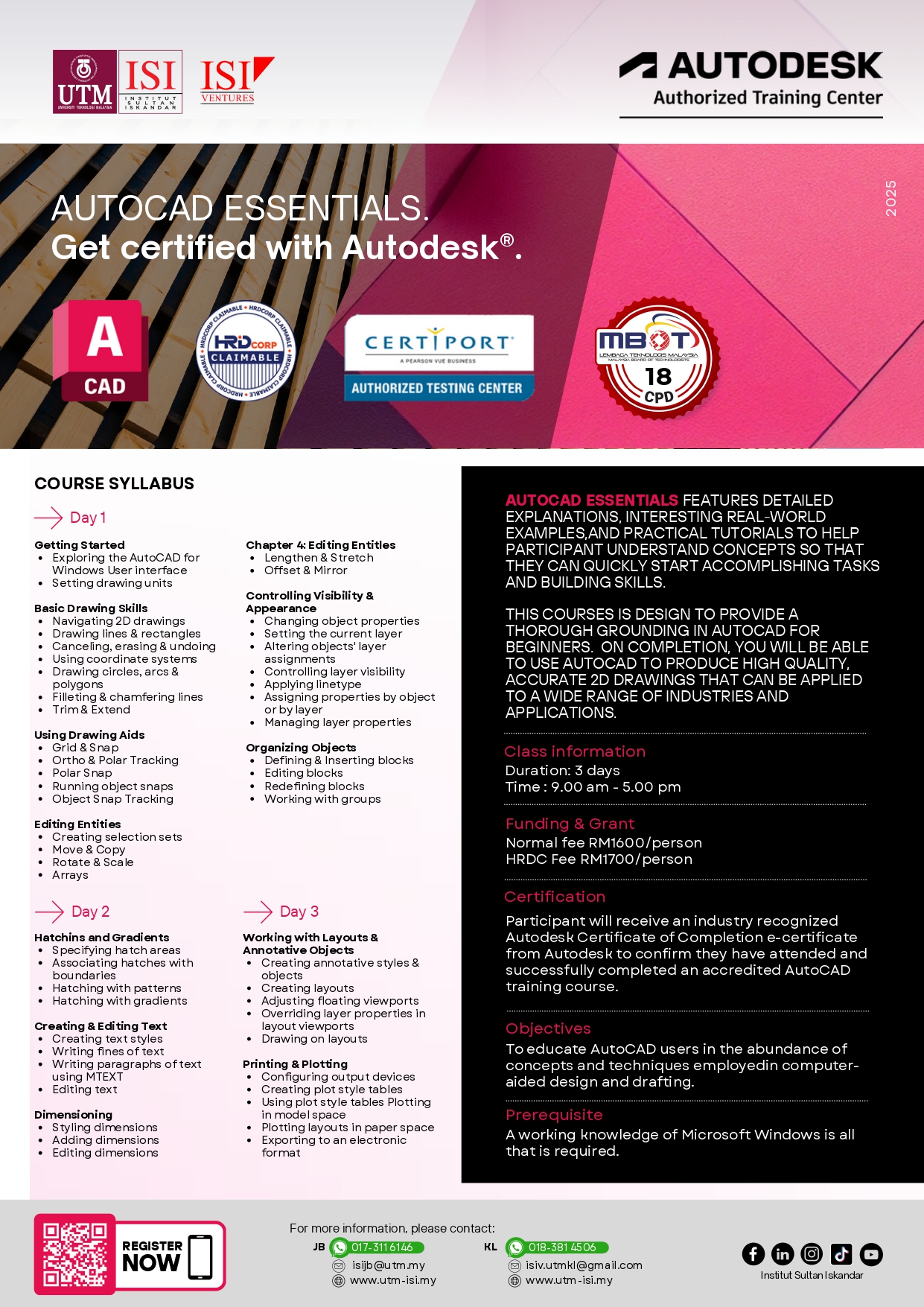

AUTODESK AUTOCAD ESSENTIALS
- Durations: 3 days | 9.00 am – 5.00 pm
- Normal Fee: RM1,600.00
- HRD Corp Claimable : RM1,700.00
- Certification: Autodesk E-Certificate of Completion
Description
AutoCAD Essentials Training enables students to create a basic 2D drawing in the AutoCAD software. Even at this fundamental level, the AutoCAD software is one of the most sophisticated computer applications that you are likely to encounter. Therefore learning to use it can be challenging.
This training covers the essential core topics for working with the AutoCAD software. The teaching strategy is to start with a few basic tools that enable the student to create and edit a simple drawing, and then continue to develop those tools. More advanced tools are also introduced throughout the training.
- Understanding the AutoCAD workspace and user interface.
- Using basic drawing, editing, and viewing tools.
- Organizing drawing objects on layers.
- Inserting reusable symbols (blocks).
- Preparing a layout to be plotted.
- Adding text, hatching, and dimensions.
By the end of the course, participants should be able to:
-
- Drawing a 2D layout with Basic Drawing Tool
- Manage User Coordinate System
- Managing a drawing with Layers
- Annotate drawings and plotting
- Create more complex surfaces and modifying solids
- Organize drawing for Modeling & Rendering
Getting Started
Exploring the AutoCAD for
Windows User interface
Setting drawing units
Basic Drawing Skills
Navigating 2D drawings
Drawing lines & rectangles
Canceling, erasing & undoing
Using coordinate systems
Drawing circles, arcs & polygons
Filleting & chamfering lines
Trim & Extend
Using Drawing Aids
Grid & Snap
Ortho & Polar Tracking
Polar Snap
Running object snaps
Object Snap Tracking
Editing Entities
Creating selection sets
Move & Copy
Rotate & Scale Arrays
Lengthen & Stretch
Offset & Mirror
Controlling Visibility & Appearance
Changing object properties
Setting the current layer
Altering objects’ layer assignments
Controlling layer visibility
Applying linetype
Assigning properties by object or by layer
Managing layer properties
Organizing Objects
Defining & Inserting blocks
Editing blocks
Redefining blocks
Working with groups
Hatchings and Gradients
Specifying hatch areas
Associating hatches with boundaries
Hatching with patterns
Hatching with gradients
Creating & Editing Text
Creating text styles
Writing fines of text
Writing paragraphs of text
using MTEXT
Editing text
Dimensioning
Styling dimensions
Adding dimensions
Editing dimensions
Working with Layouts & Annotative Objects
Creating annotative styles & objects
Creating layouts
Adjusting floating viewports
Overriding layer properties in layout viewports
Drawing on layouts
Printing & Plotting
Configuring output devices
Creating plot style tables
Using plot style tables Plotting in model space
Plotting layouts in paper space
Exporting to an electronic format
Prerequisites
A working knowledge of Microsoft Windows is all the required
Are you interested in Learning Autodesk AutoCAD Essentials?
Check out our latest schedule on Autodesk AutoCAD Essentials now!
Schedule:
UTM KL: 13-15 May 2025 | 8-10 Jul. 2025 | 9-11 Sep.2025 | 4-6 Nov. 2025
UTM JB : 6-8 May 2025 | 1-3 Jul. 2025 | 30 Sep, 1-2 Oct 2025 | 16-18 Dec 2025
Note: This course will proceed only if a minimum of 10 participants are registered. In the event of insufficient enrollment, ISI may postpone or cancel the course.
FREQUENTLY ASK QUESTION
What is Autodesk AutoCAD?
It includes features to automate tasks and increase productivity such as comparing drawings, counting, adding objects, and creating tables. It also comes with seven industry-specific toolsets for electrical design, plant design, architecture layout drawings, mechanical design, 3D mapping, adding scanned images, and converting raster images.
AutoCAD enables users to create, edit, and annotate drawings via desktop, web, and mobile devices.
Who uses AutoCAD?
Autodesk AutoCAD equips architects, engineers, and construction professionals with precision tools to:
-
-
Design and annotate 2D geometry and 3D models with solids, surfaces, and mesh objects
-
Automate drafting tasks to place objects with AI, compare drawings, create schedules, publish layouts, and more
-
Maximize productivity with customized workspaces, AutoLISP, APIs, and apps
-
